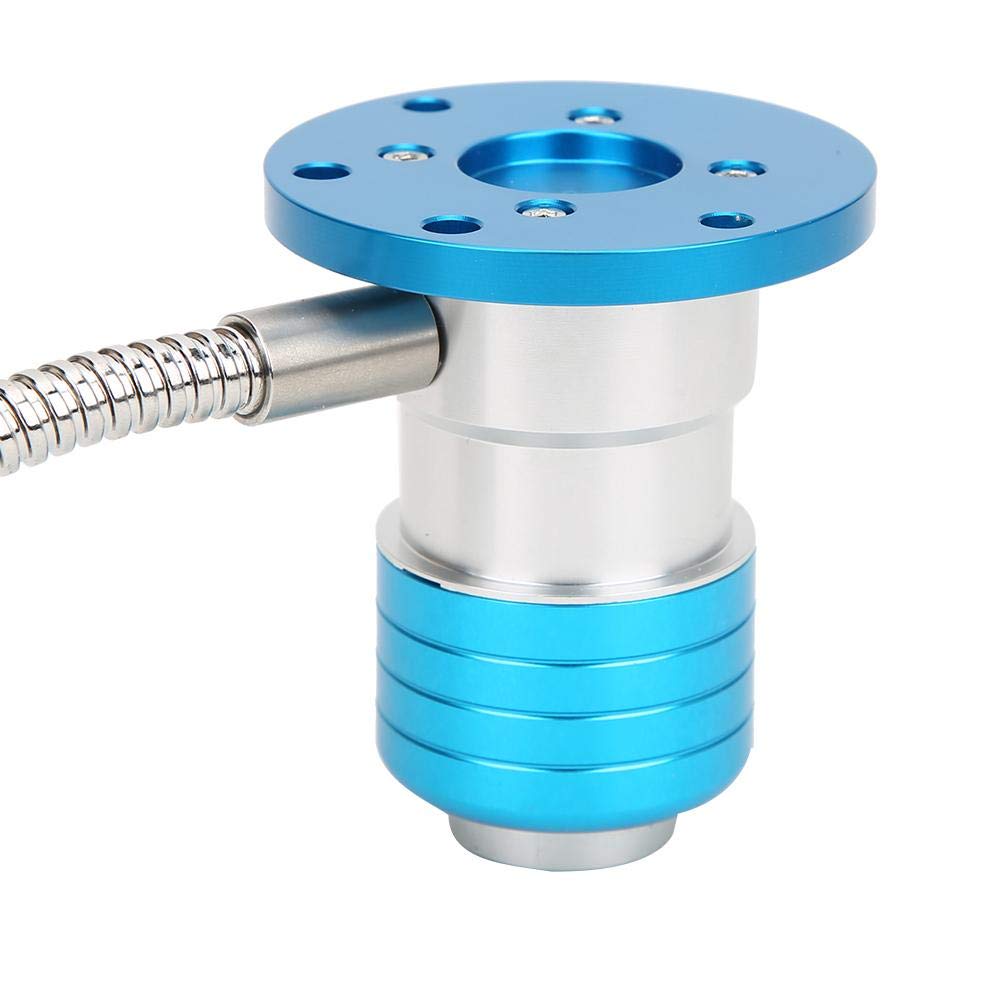

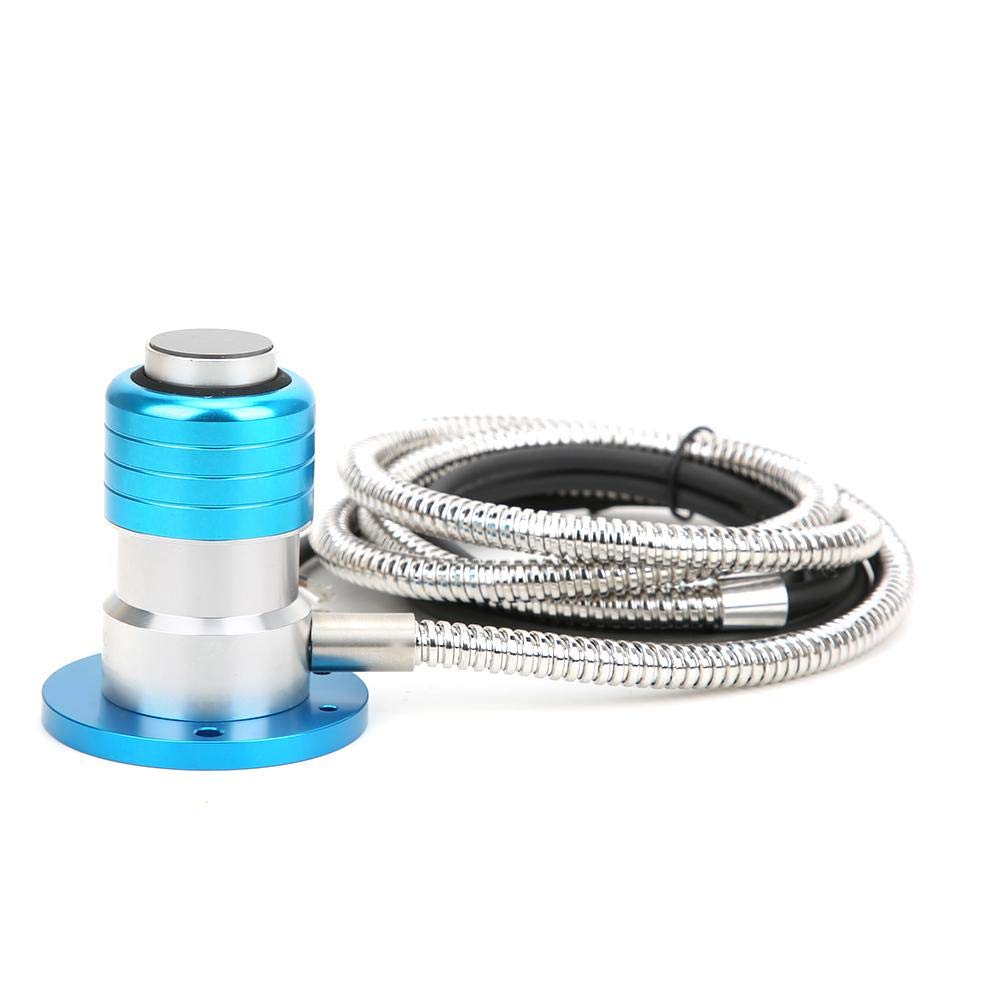

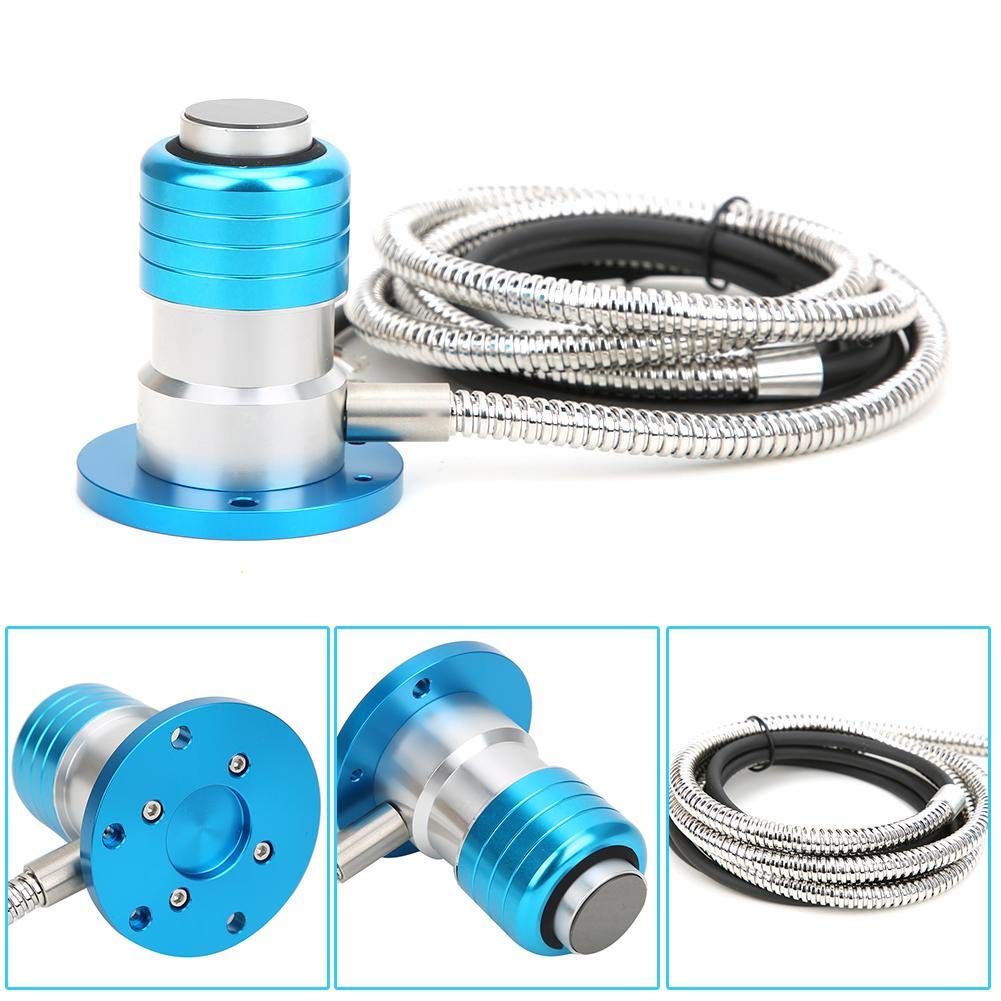

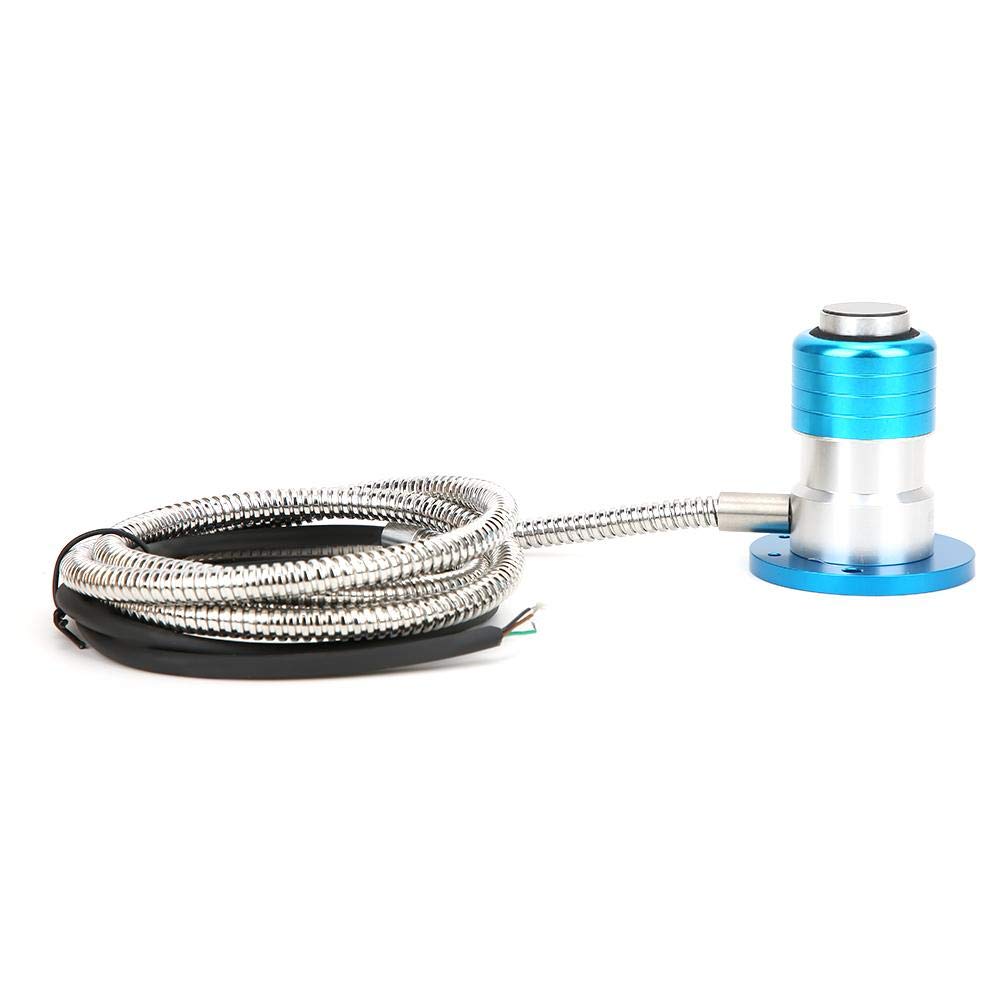

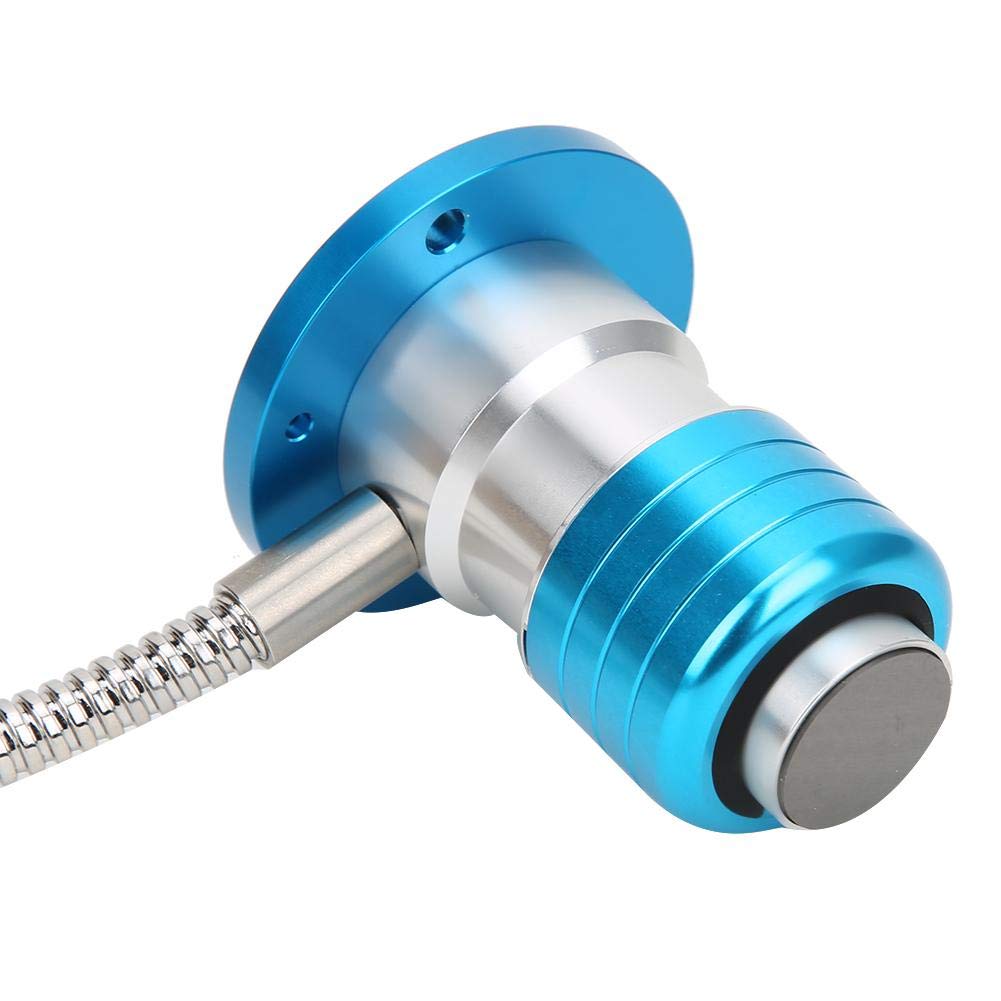

CNC Automatic Tool Setting Gauge - 4-Line Z-Axis Presetter for Router & Engraving Machines | High Precision Touch Sensor | Perfect for Woodworking, Metal Cutting & 3D Carving Projects

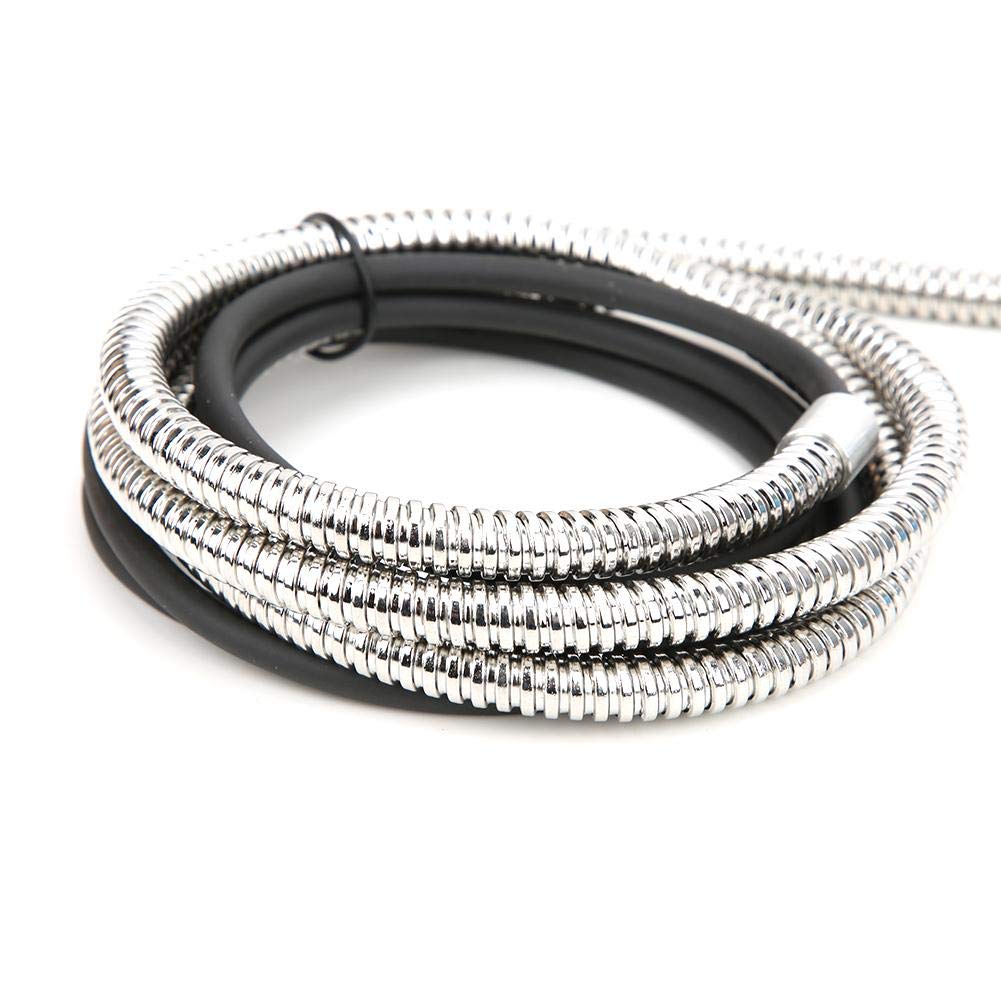

Feature:1. With dust-proof and structure, it has good durability under the conditions of cooling liquid and iron filings flying 2. No built-in amplifier required, no deviation due to temperature and power supply voltage fluctuations of the part where the tool is located, can be directly input to the NC and program (PLC) 3. The sharpness corner of the tool directly contacts the tip of the tool related to the machining size, and its position, size, and Specification:Item Type: Automatic Tool Setting Gauge Output Mode: B: NC (normally closed) Stroke: 5mm Repeatability: 0.001mm Electric Shock Life: 3 million times Structure: IP67 Force: 1.5N Material of the Area: Hard-bonding Housing Material: Ground 4S Tube: 1 meters minimum bending radius R25 Cable: 2 meters oil 4-core Electrical Aspects: 1. rating DC24V ± 10% 20mA (maximal) 2. When the body of the machine is grounded, use the tool setter to install it on the side of the ground wire. 3. For the tool setting instrument with LED, pay attention to the connection (+) (-) when connecting. Recommended value is 10mA, load. 4. For the output structure when the interface unit is attached, please read the user manual Package List:1 x Automatic Tool Setting Gauge
