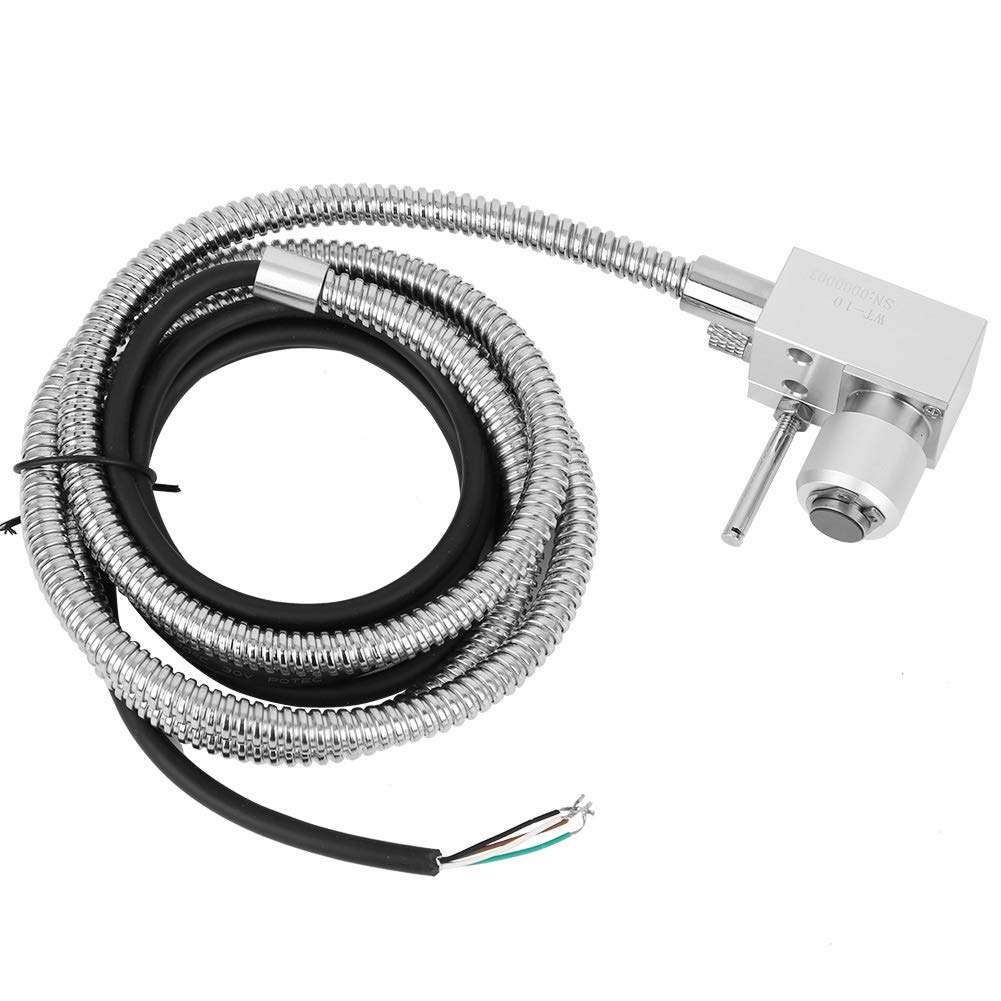

High Precision Anti-Oxidation CNC Tool Touch Sensor - Automatic Tool Setting Device for CNC Engraving Machines | Professional Grade for Metalworking, Woodworking & Industrial Applications

Feature:1. Automation operation, fast mechanical operation efficiency, alarm signal can be sent when overtravel2. With dust-proof and waterproof structure, it has good durability under the conditions of cooling liquid and iron filings flying3. No built-in amplifier required, no deviation due to temperature and power supply voltage fluctuations of the part where the tool is located, can be directly input to the NC and program (PLC)4. The sharpness corner of the tool directly contacts the tip of the tool related to the machining size, and its position, size, and output signal are measured, with high accuracy.5. High quality material can make sure the durability and stability of the productSpecification:Item Type: Automatic Tool Setting GaugeOutput Mode: B: NC (normally closed)Stroke: 5mmRepeatability: 0.001mmElectric Shock Life: 3 million timesProtection Structure: IP67Contact Force: 1.5NMaterial of the Contact Area: Hard-bondingHousing Material: Ground 4SProtection Tube: 1 meters minimum bending radius R25Cable: 2 meters oil resistant 4-coreElectrical Aspects: 1. Contact rating DC24V ± 10% 20mA (maximal)2. When the body of the machine is grounded, use the tool setter to install it on the side of the ground wire.3. For the tool setting instrument with LED, pay attention to the connection (+) (-) when connecting. Recommended value is 10mA, resistance load.4. For the output structure when the interface unit is attached, please read the user manual Package List:1 x Automatic Tool Setting Gauge
